We offer two distinct elevation cladding solutions: ACP (Aluminium Composite Panel) for commercial projects and HPL (High Pressure Laminate) for luxury residential and villa applications. Both provide exceptional durability and aesthetic appeal, but serve different market segments and installation requirements.
ACP (Aluminium Composite Panel) is the go-to cladding material for commercial building elevations. Made with aluminium coil on both sides sandwiching a polyethylene core, ACP offers exceptional durability, weather resistance, and a sleek modern finish that transforms any commercial facade. For wooden finishes, we use PVDF (Polyvinylidene Fluoride) coating – a premium coating technology that provides superior color retention, UV resistance, and a realistic wood texture.
🏢 Ideal for Commercial Projects – Office buildings, showrooms, malls, hotels, hospitals, educational institutions, and any commercial facade requiring a premium, durable finish. Installation: 4×4 grid aluminium framework with wooden screws and silicon sealant (no rivets).

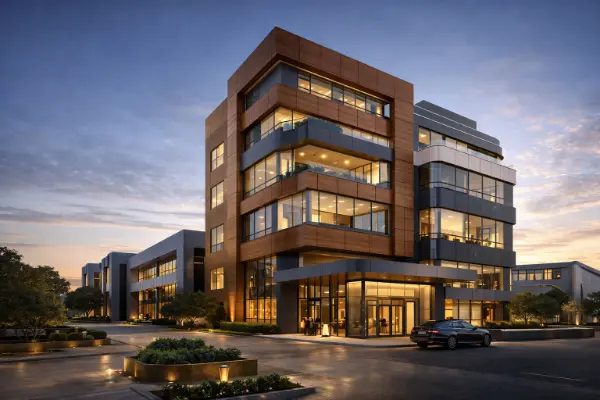

HPL (High Pressure Laminate) is a premium cladding solution designed for luxury residential projects, villas, and high-end commercial spaces. HPL panels feature a high-pressure decorative laminate surface with exceptional wood grain textures and natural finishes that mimic real wood, stone, or other premium materials. Unlike ACP, HPL offers a more premium, sophisticated aesthetic perfect for luxury homes and upscale projects.
🏡 Ideal for Luxury Projects – Villas, premium residential buildings, luxury hotels, high-end showrooms, and projects requiring sophisticated, natural-looking finishes. Installation: Growing system with rivets for secure, professional mounting.
HPL panels are installed using a grooving system with rivets – a specialized installation method that ensures secure, long-lasting mounting. The grooving system involves creating grooves or channels in the HPL panels, which are then secured using aluminium rivets to the supporting framework. This method provides:
Available in 3mm, 4mm, and 6mm thickness. 4mm is most commonly used for commercial facades. 6mm provides extra rigidity for larger panels and high-wind areas.
Our ACP installation uses 4×4 grid pattern aluminium profile framing. Panels are secured using aluminium profile frames, wooden screws, and silicon sealant (no rivets) for a clean, concealed fixing system that ensures watertight joints and easy panel replacement if needed. This method is ideal for commercial projects where cost-effectiveness and quick installation are priorities.
For Railways, Airports, Metro Stations, Malls, and Government projects, fire safety compliance is mandatory. FR Grade B ACP features a mineral-filled fire retardant core that doesn't propagate fire and is self-extinguishing.
Special Installation: Unlike regular ACP that mounts directly on walls, FR Grade B requires bracket mounting for walls and ceilings:
Available in 4mm thickness, Plain color only. Certified for large public projects.
Aluminium coil both sides with PE/PVDF core – easy to handle, rigid panels
Withstands rain, heat, humidity – no rust, warping, or degradation
Premium coating for wooden textures – superior UV resistance & color retention
FR grade available for safety compliance in commercial buildings
Just wipe clean – no painting, polishing, or special care needed
Long-term investment with minimal maintenance costs
Direct answer: HPL + ACP elevation cladding combo is priced ₹312–₹601 per sqft in 2026 — PVDF ACP 3mm ₹312, 4mm ₹359, 6mm ₹451 (wooden +~18%); FR Grade B 4mm ACP ₹601 for Government / Railways / Airports. Wooden HPL ceilings + beam covers priced as per HPL exterior page.
| ACP Grade / type | Price (₹/sqft) | Typical use |
|---|---|---|
| PVDF ACP 3mm — Plain / Wooden | ₹312 / ₹370 | Residential elevations & beam covers |
| PVDF ACP 4mm — Plain / Wooden | ₹359 / ₹439 | Commercial offices, showrooms, malls |
| PVDF ACP 6mm — Plain / Wooden | ₹451 / ₹520 | Premium commercial & hotel facades |
| FR Grade B ACP 4mm — Plain | ₹601 | Railways / Airports / Metro / Govt |
| Material & Grade | 8 × 4 ft (32 sqft) | 10 × 4 ft (40 sqft) | 12 × 5 ft (60 sqft) |
|---|---|---|---|
| HPL 6mm — Newmika (Budget) | ₹9,500 – ₹11,500 | ₹11,800 – ₹14,400 | ₹17,800 – ₹21,500 |
| HPL 6mm — Greenlam (Indian) | ₹11,500 – ₹13,500 | ₹14,400 – ₹16,900 | ₹21,500 – ₹25,300 |
| HPL 6mm — FunderMax (Imported) | ₹15,500 – ₹18,500 | ₹19,400 – ₹23,100 | ₹29,000 – ₹34,700 |
| PVDF ACP 3mm — Plain / Wooden | ₹6,200 – ₹7,400 | ₹7,700 – ₹9,200 | ₹11,600 – ₹13,900 |
| PVDF ACP 4mm — Plain / Wooden | ₹7,200 – ₹8,800 | ₹8,950 – ₹11,000 | ₹13,400 – ₹16,400 |
| PVDF ACP 6mm — Plain / Wooden | ₹9,000 – ₹10,400 | ₹11,200 – ₹13,000 | ₹16,800 – ₹19,500 |
| FR Grade B ACP 4mm | ₹12,000 – ₹13,500 | ₹14,950 – ₹16,900 | ₹22,500 – ₹25,350 |
Note: Per-sheet rates are raw supply-only (GST extra). Add ₹120–₹190/sqft for installation with aluminium framework & fasteners. Bulk orders (> 50 sheets) get 4–7% discount.
Our HPL and ACP elevation cladding solutions cater to different project needs. ACP cladding is ideal for commercial buildings, offices, showrooms, malls, and hotels with 4×4 grid installation using screws and sealant. HPL cladding is perfect for luxury villas, premium residential buildings, and high-end commercial spaces with grooving system installation using rivets for superior strength and premium finish. We supply across India — Hyderabad, Delhi NCR, Bangalore, Mumbai, Pune, Jaipur and more. Use our free price calculator to get instant estimates for your elevation cladding project.
💰 ACP starts from ₹500/sqft (4mm sheets + aluminium framework + installation). HPL starts from ₹350/sqft. GST extra.
📊 Standardized Pricing: This calculation follows a standardized pricing logic used by fabricators and refined by WoodenMax calculators based on real project data.
Step 1: Enter total area in square feet or square meters for your cladding project.
Step 2: Select project type (Commercial Buildings or FR Grade B for Railways/Airports).
Step 3: Choose sheet thickness (3mm, 4mm, or 6mm).
Step 4: Select color type (Plain colors or Wooden finish).
Step 5: Get instant price estimate! Fill your details and request quote for final pricing.
✓ ACP Sheets (Top Indian Brands, PVDF)
✓ Aluminium Profile Framework (4×4 Grid)
✓ Wooden Screws + Silicon Sealant
✓ Professional Installation
✓ 5% Extra Material for Wastage
👇 Submit for Exact Final Price
